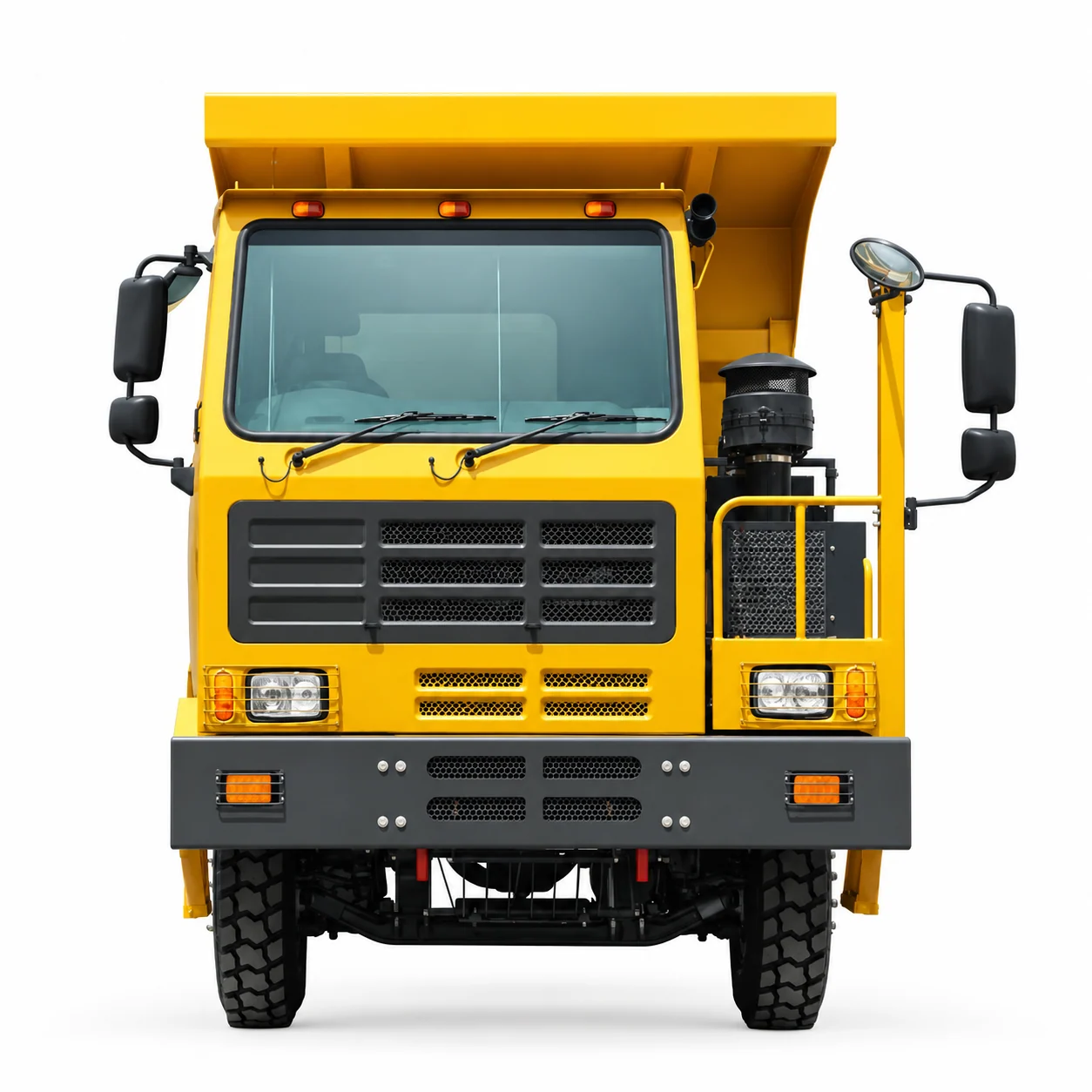

Representative equipment image35T Wide-Body Mining TruckWide-Body Mining Truck
A 35,000 kg rated-payload wide-body mining truck with 19,500 kg empty weight, 340 HP engine output and a 22 m³ struck body. Final configuration is confirmed against the intended mine, haul profile and order requirements.
A 35,000 kg rated payload for surface haulage.
This payload class is intended for on-site and short-haul material haulage in open-pit coal mines, metal mines and aggregate quarries. Haul distance, ramp grade, loading equipment, material density and road conditions should be reviewed together before configuration is confirmed.
Capacity, powertrain and overall dimensions.
Capacity
- Rated payload
- 35,000 kg
- Empty weight
- 19,500 kg
- Gross vehicle weight
- 54,500 kg
Overall dimensions
- Overall length
- 8,830 mm
- Overall width
- 2,620 mm
- Overall height
- 3,690 mm
Powertrain
- Engine
- WEICHAI WP12G340
- Engine output
- 340 HP
- Transmission
- FAST 9JSD150A / 7DS180
Chassis
- Axle load
- 9.5 + 16 + 16 t
- Tyre
- 12.00R20
- Min ground clearance
- 293 mm
Body
- Body capacity (struck)
- 22 m³
- Body capacity (heaped)
- 25.5 m³
Performance
- Max speed (unladen)
- 50 km/h
- Max speed (laden)
- 50 km/h
- Max gradeability
- 32 %
- Min turning diameter
- 22 m
Start with the haul profile and operating environment.
Check the machine envelope against site access.

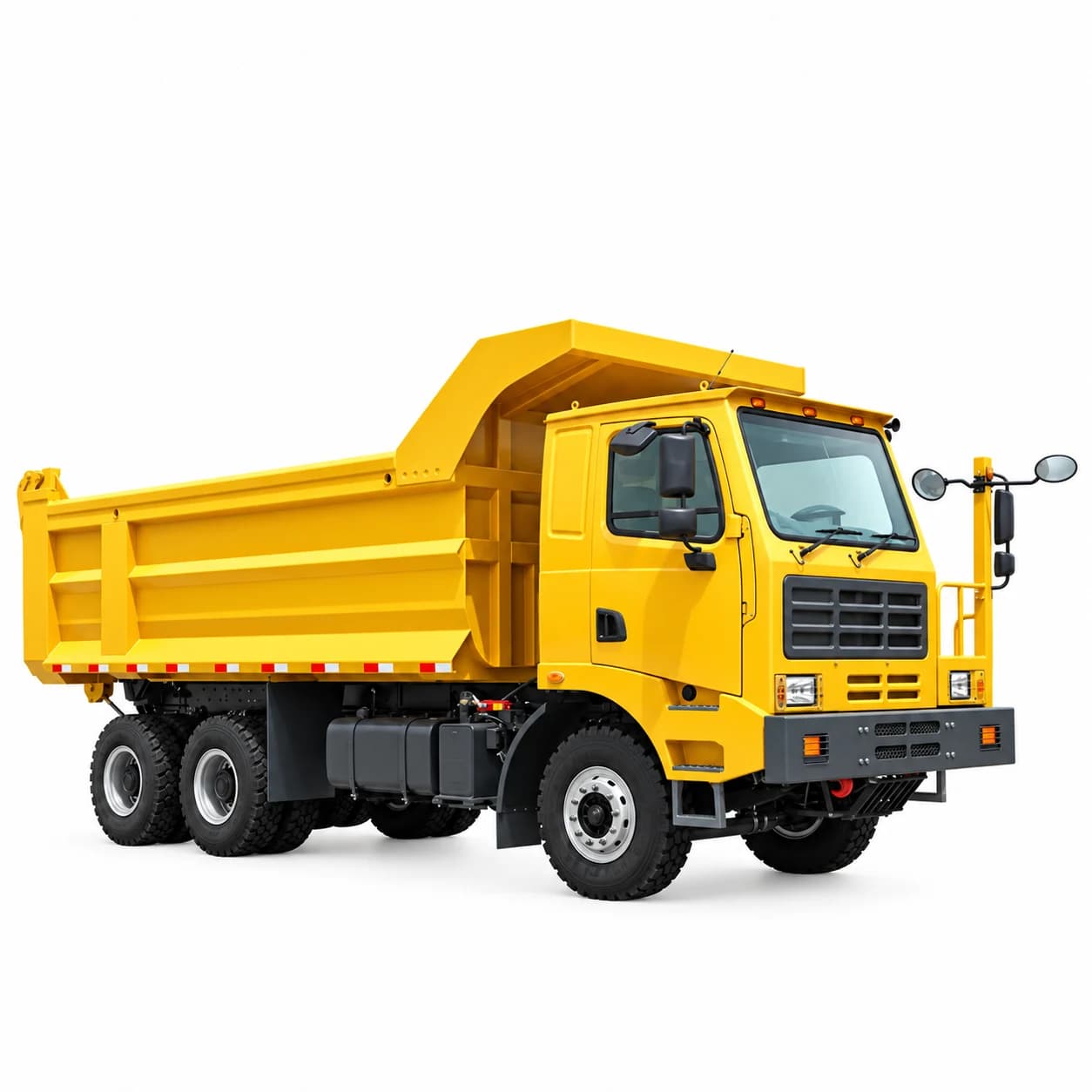

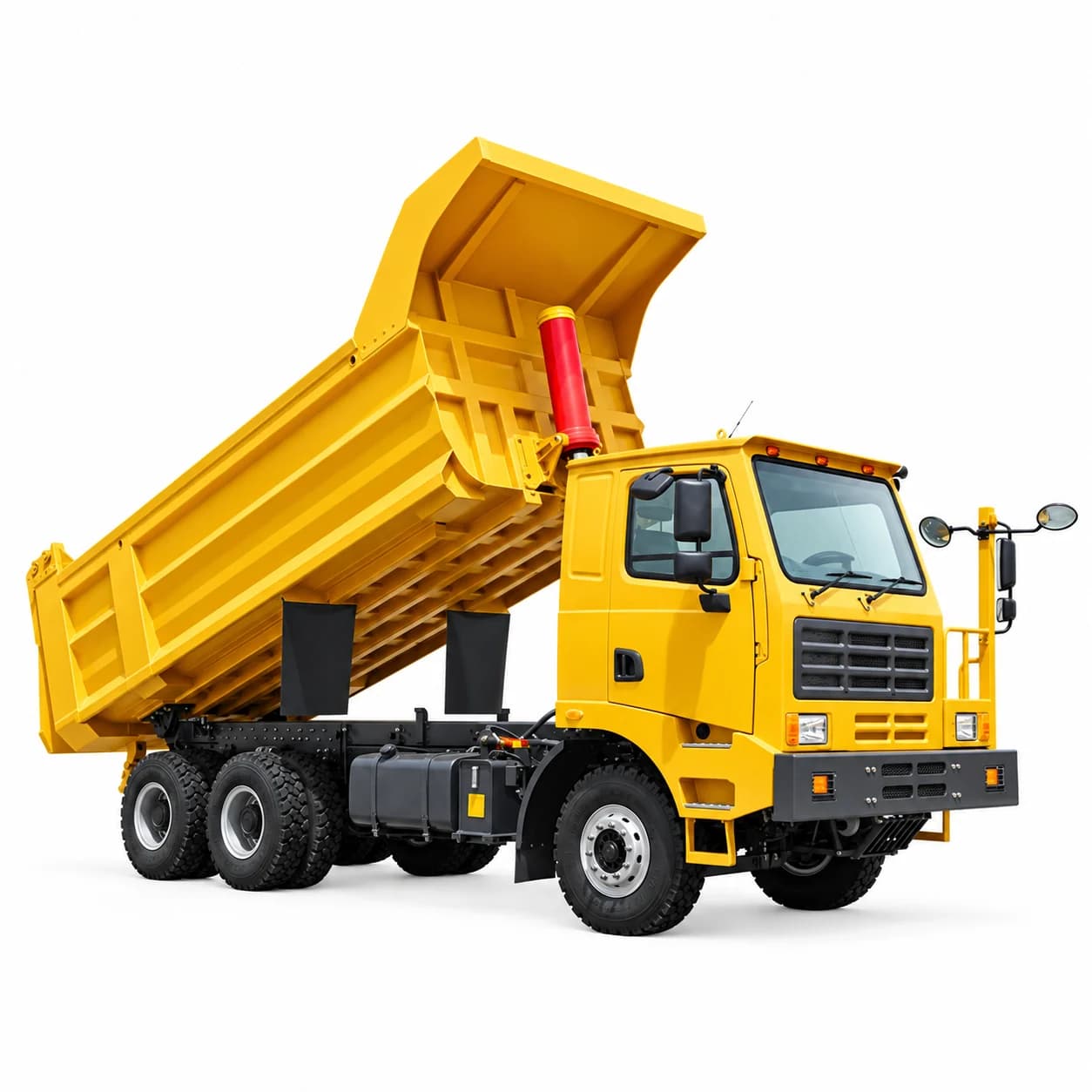

Review approved equipment views.
What the current product record confirms.
What is the rated payload?
The reviewed source record lists a rated load of 35,000 kg.
What engine output is listed?
The reviewed source record lists 340 HP engine output.
What body capacity is listed?
The reviewed source record lists 22 m³ struck and 25.5 m³ heaped body capacity.
Are price and availability shown on this page?
No. Configuration, commercial terms and availability must be confirmed for the intended site and order.
