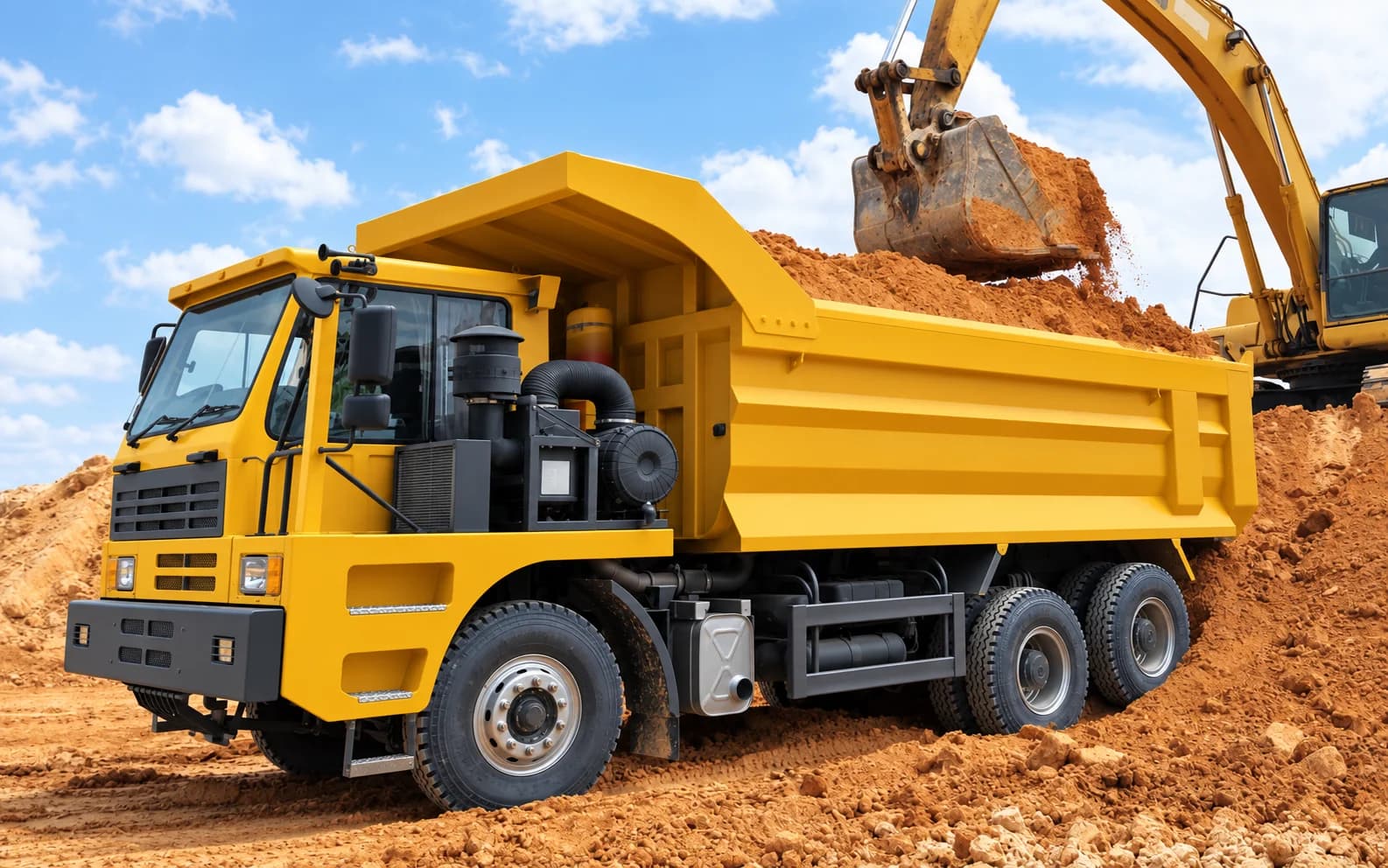

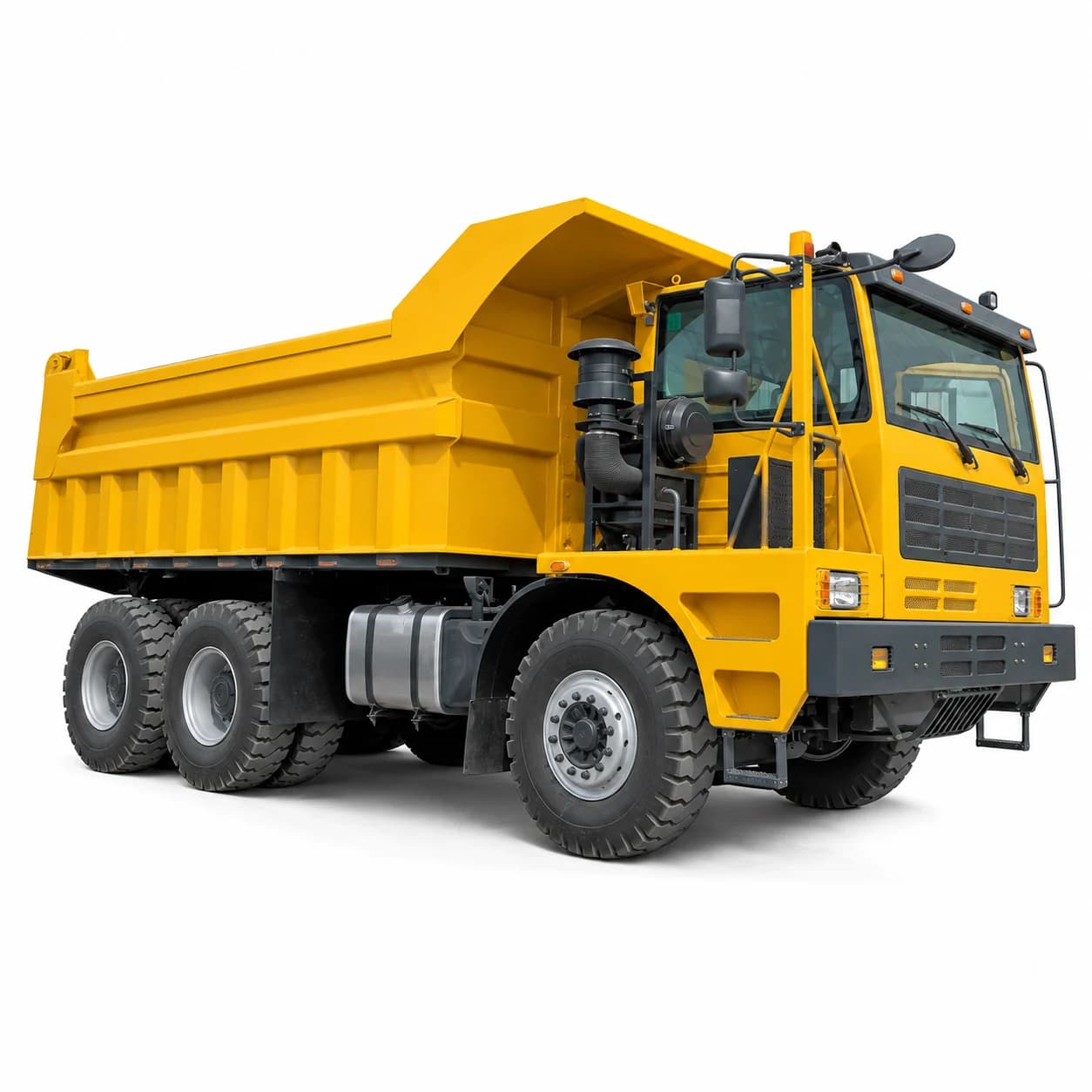

Representative equipment image50T Wide-Body Mining TruckWide-Body Mining Truck
A 50,000 kg rated-payload wide-body mining truck with 26,000 kg empty weight, 430 HP engine output and a 23.5 m³ struck body. Final configuration is confirmed against the intended mine, haul profile and order requirements.
A 50,000 kg rated payload for surface haulage.
This payload class is intended for on-site and short-haul material haulage in open-pit coal mines, metal mines and aggregate quarries. Haul distance, ramp grade, loading equipment, material density and road conditions should be reviewed together before configuration is confirmed.
Capacity, powertrain and overall dimensions.
Capacity
- Rated payload
- 50,000 kg
- Empty weight
- 26,000 kg
- Gross vehicle weight
- 76,000 kg
Overall dimensions
- Overall length
- 8,750 mm
- Overall width
- 3,320 mm
- Overall height
- 4,060 mm
Powertrain
- Engine
- WEICHAI WP12G430E310
- Engine output
- 430 HP
- Transmission
- FAST 7DS200
Chassis
- Axle load
- 18 + 25 + 25 t
- Tyre
- 14.00-25 / 14.00R25
- Min ground clearance
- 362 mm
Body
- Body capacity (struck)
- 23.5 m³
- Body capacity (heaped)
- 28.5 m³
Performance
- Max speed (unladen)
- 41 km/h
- Max speed (laden)
- 38 km/h
- Max gradeability
- 29 %
- Min turning diameter
- 21 m
Start with the haul profile and operating environment.
Check the machine envelope against site access.
Review approved equipment views.
What the current product record confirms.
What is the rated payload?
The current reviewed record lists a rated load of 50,000 kg.
What engine output is listed?
The current reviewed record lists 430 HP engine output.
What body capacity is listed?
The current reviewed record lists 23.5 m³ struck and 28.5 m³ heaped body capacity.
Are price and availability shown on this page?
No. Configuration, commercial terms and availability must be confirmed for the intended site and order.
Ask about this truck.
Start with one contact method and a short equipment request. We can confirm site conditions and configuration during follow-up.
