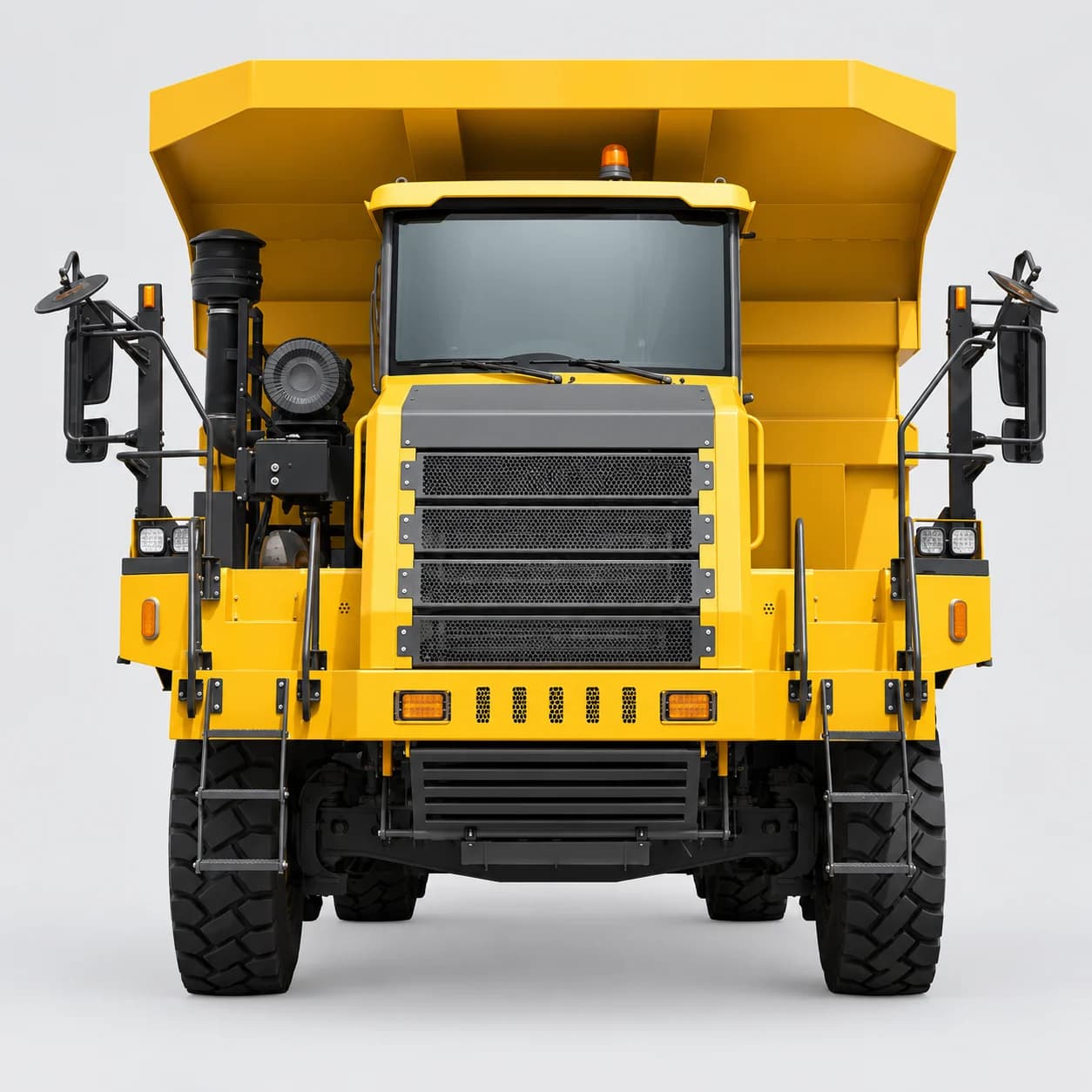

Representative equipment image70T Wide-Body Mining TruckWide-Body Mining Truck
A 70,000 kg rated-payload wide-body mining truck with 35,280 kg empty weight, 530 HP engine output and a 35.5 m³ struck body. Final configuration is confirmed against the intended mine, haul profile and order requirements.
A 70,000 kg rated payload for surface haulage.
This payload class is intended for heavy-duty haulage in large open-pit mines and longer-distance transfer of ore, earth-rock and other loose materials. Route profile, grades, loading match, material density and operating hours should be reviewed before configuration is confirmed.
Capacity, powertrain and overall dimensions.
Capacity
- Rated payload
- 70,000 kg
- Empty weight
- 35,280 kg
- Gross vehicle weight
- 105,280 kg
Overall dimensions
- Overall length
- 9,770 mm
- Overall width
- 3,670 mm
- Overall height
- 4,290 mm
Powertrain
- Engine
- WEICHAI WP13G530E310
- Engine output
- 530 HP
- Transmission
- FAST & CAT FC6A250 / ALLISON 4800
Chassis
- Axle load
- 25 + 40 + 40 t
- Tyre
- 16.00-25 / 16.00R25
- Min ground clearance
- 370 mm
Body
- Body capacity (struck)
- 35.5 m³
- Body capacity (heaped)
- 42.5 m³
Performance
- Max speed (unladen)
- 50 km/h
- Max speed (laden)
- 50 km/h
- Max gradeability
- 35 %
- Min turning diameter
- 24 m
Start with the haul profile and operating environment.
Check the machine envelope against site access.

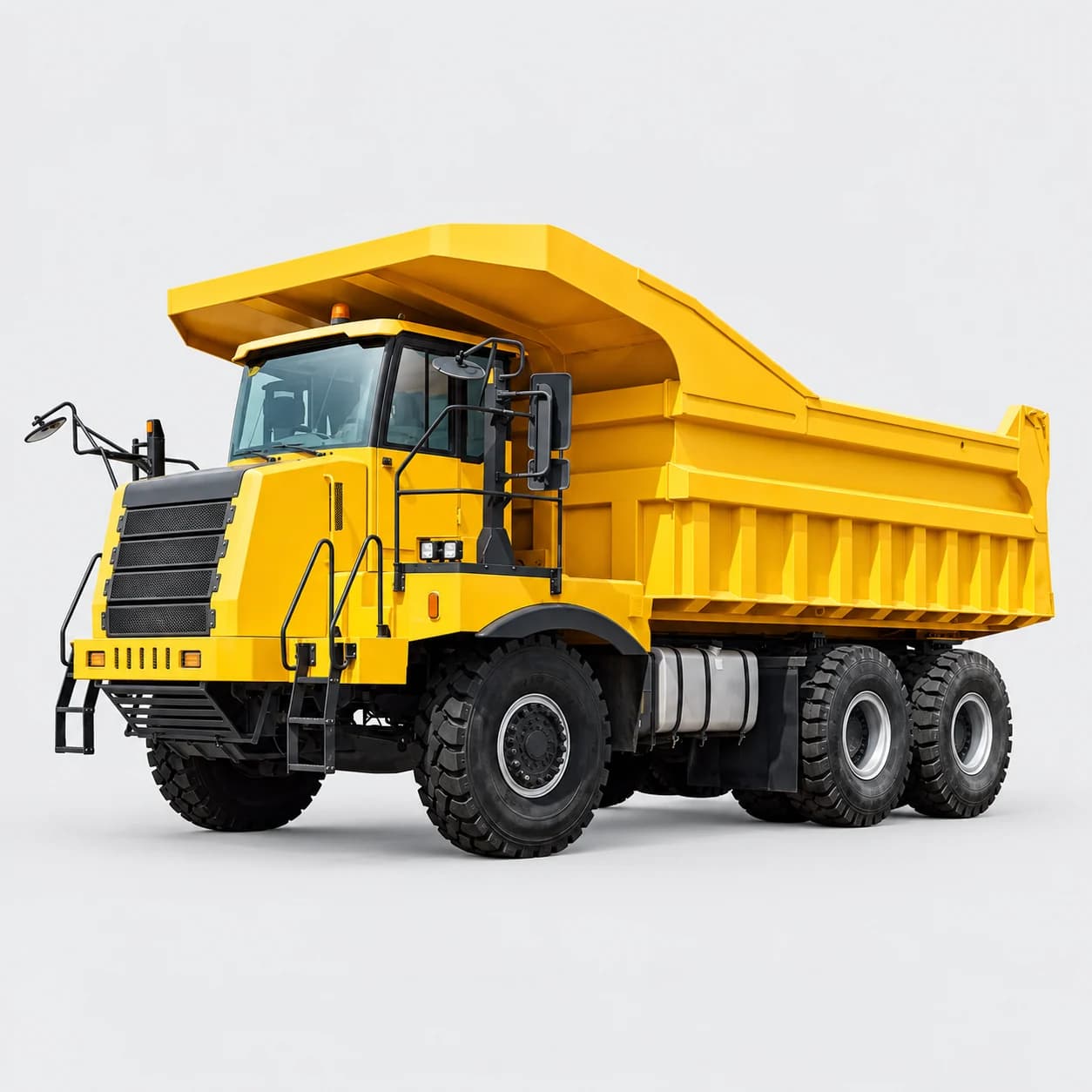

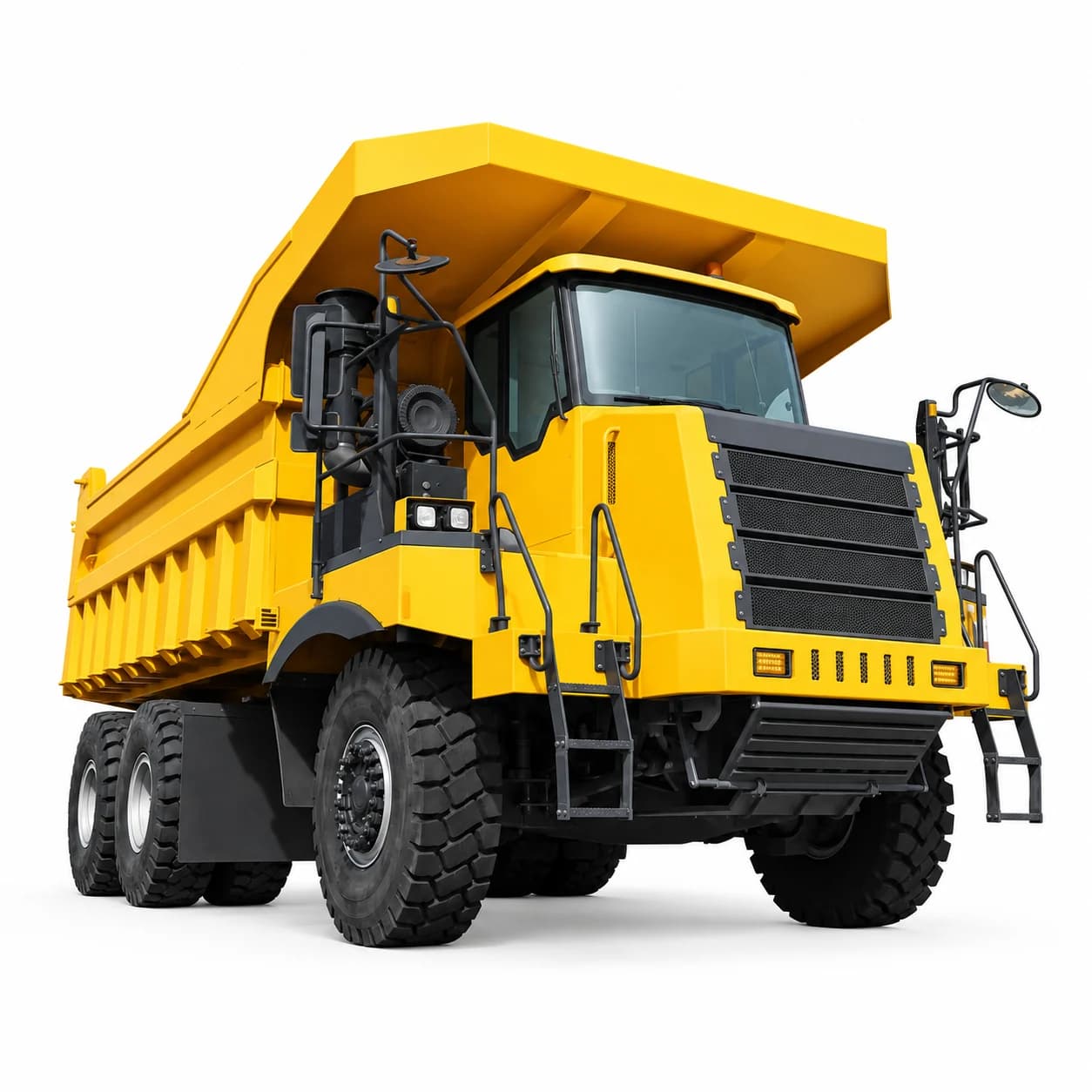

Review approved equipment views.
What the current product record confirms.
What is the rated payload?
The reviewed source record lists a rated load of 70,000 kg.
What engine output is listed?
The reviewed source record lists 530 HP engine output.
What body capacity is listed?
The reviewed source record lists 35.5 m³ struck and 42.5 m³ heaped body capacity.
Are price and availability shown on this page?
No. Configuration, commercial terms and availability must be confirmed for the intended site and order.
