Representative equipment imageRH-MT-009 · Surface
RILLHOLT RH-MT-009 Wide-Body Mining TruckMining Trucks
Suitable for on-site and short-haul material haulage in open-pit coal mines, metal mines and aggregate quarries, balancing hauling efficiency and operating cost.
35000 kgRated Load
19500 kgCurb Weight
24 m³Body Volume
340 HPEngine Power
Overview
The RILLHOLT RH-MT-009 is a wide-body mining dump truck with a rated payload of 35t (35,000kg), kerb weight of 19.5t (19,500kg), powered by a Weichai WP12G340E310 engine (340HP), mated to a Fast Gear 7DS180 transmission, body volume of 24m³, 6x4 drive, dimensions of 8830×2620×3690mm, max speed of 50km/h.
Specifications
Specifications
- Rated Load
- 35000 kg
- Curb Weight
- 19500 kg
- Body Volume
- 24 m³
- Engine Power
- 340 HP
- Dimensions
- 8830×2620×3690 mm
- Drive
- 6x4
- Max Speed
- 50 km/h
Applications

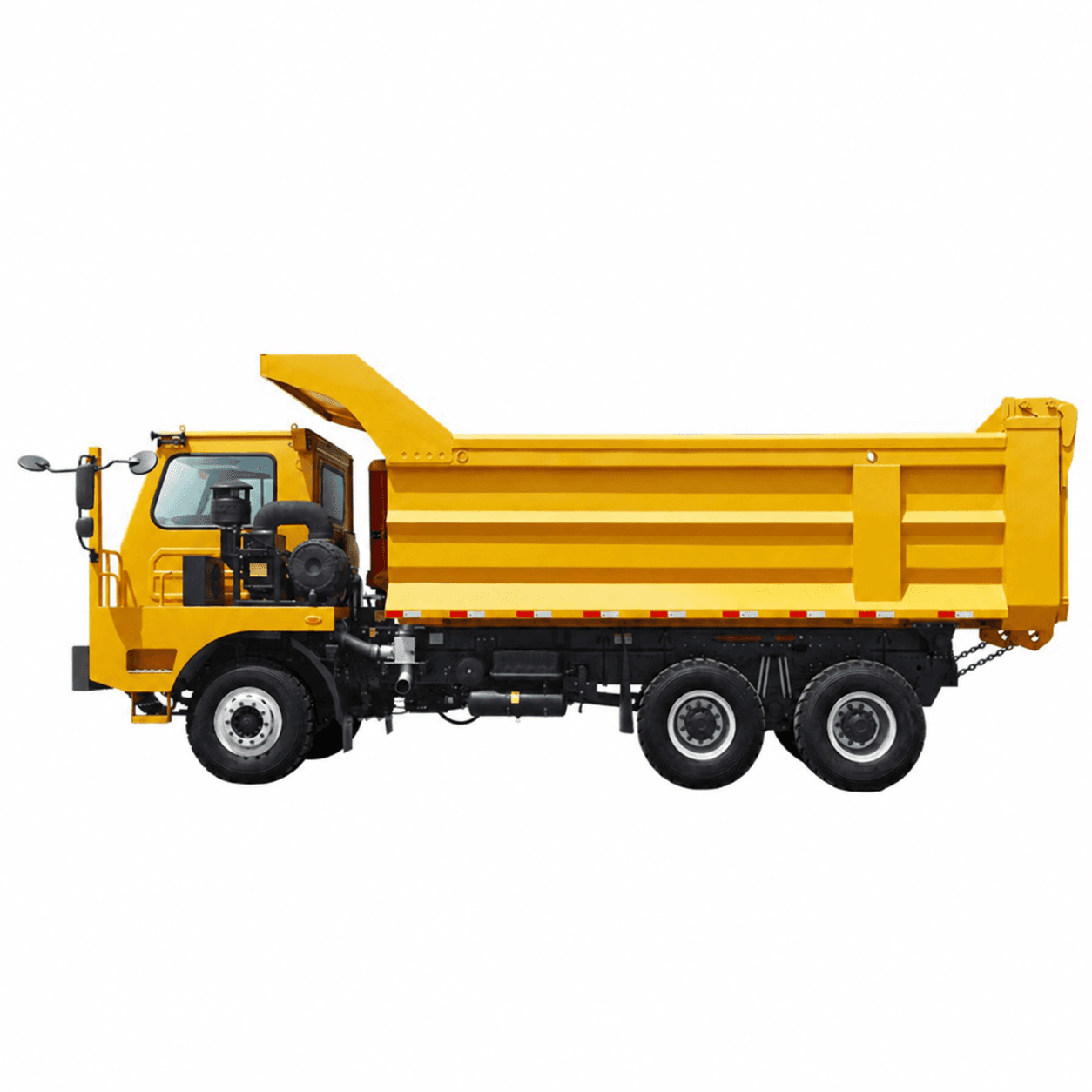

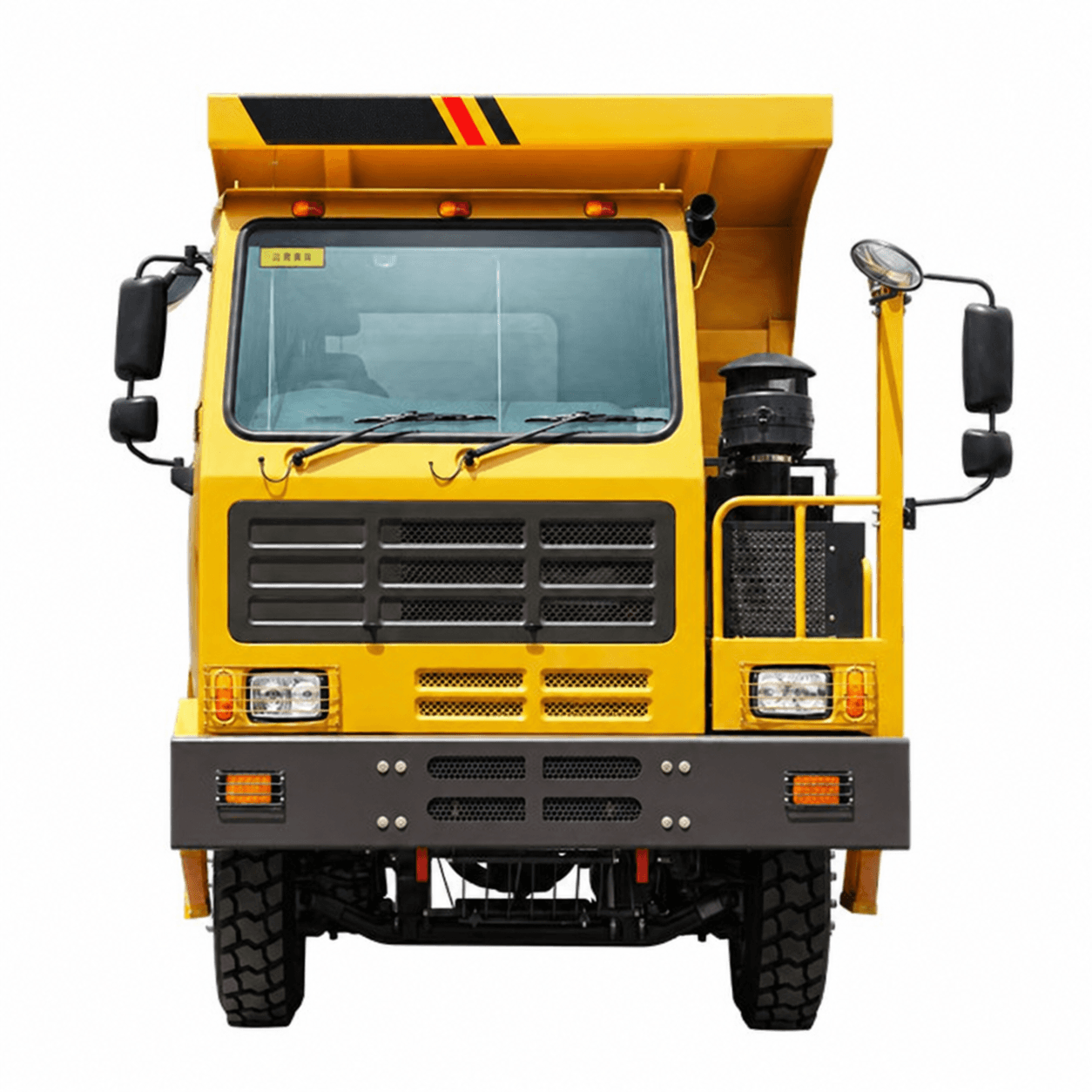

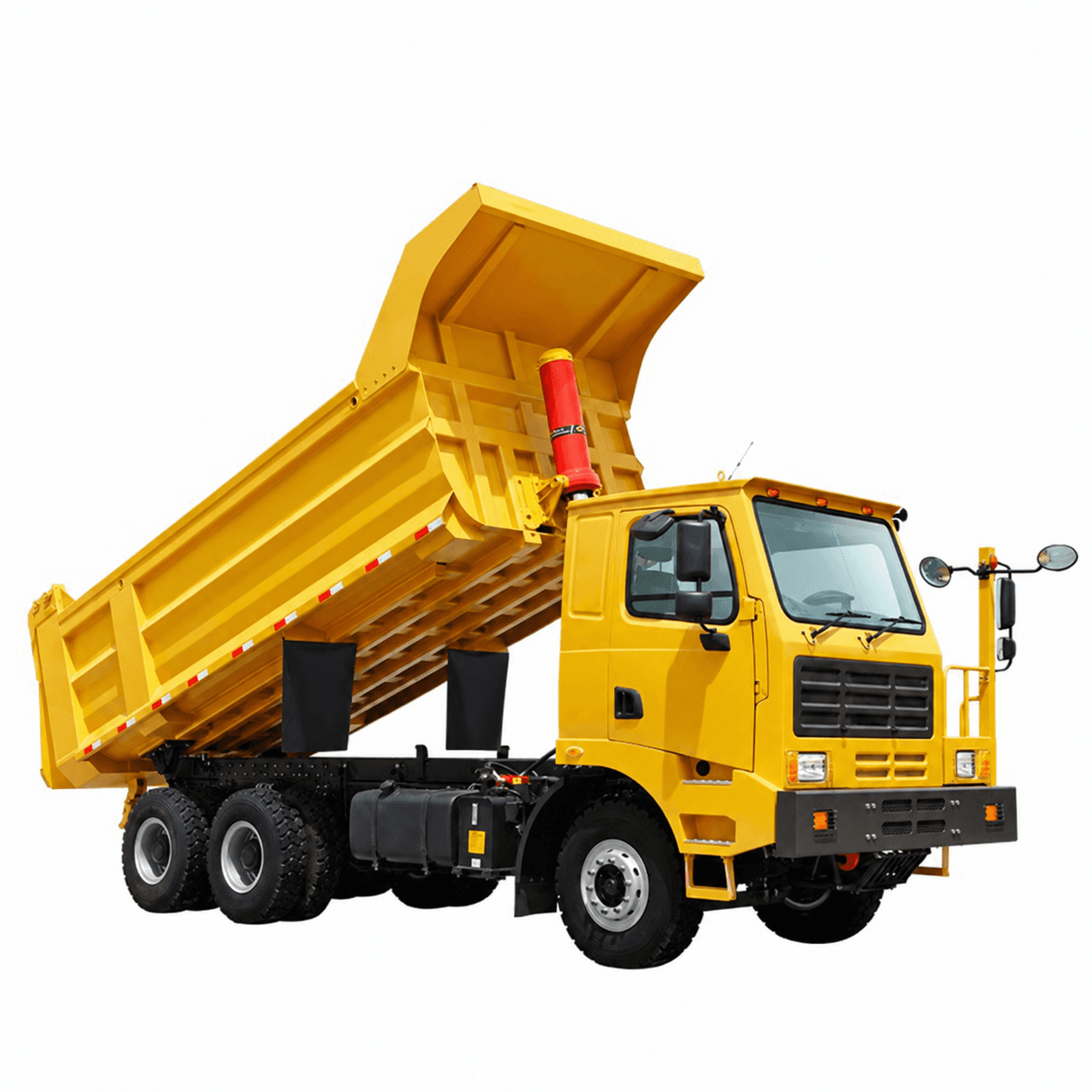

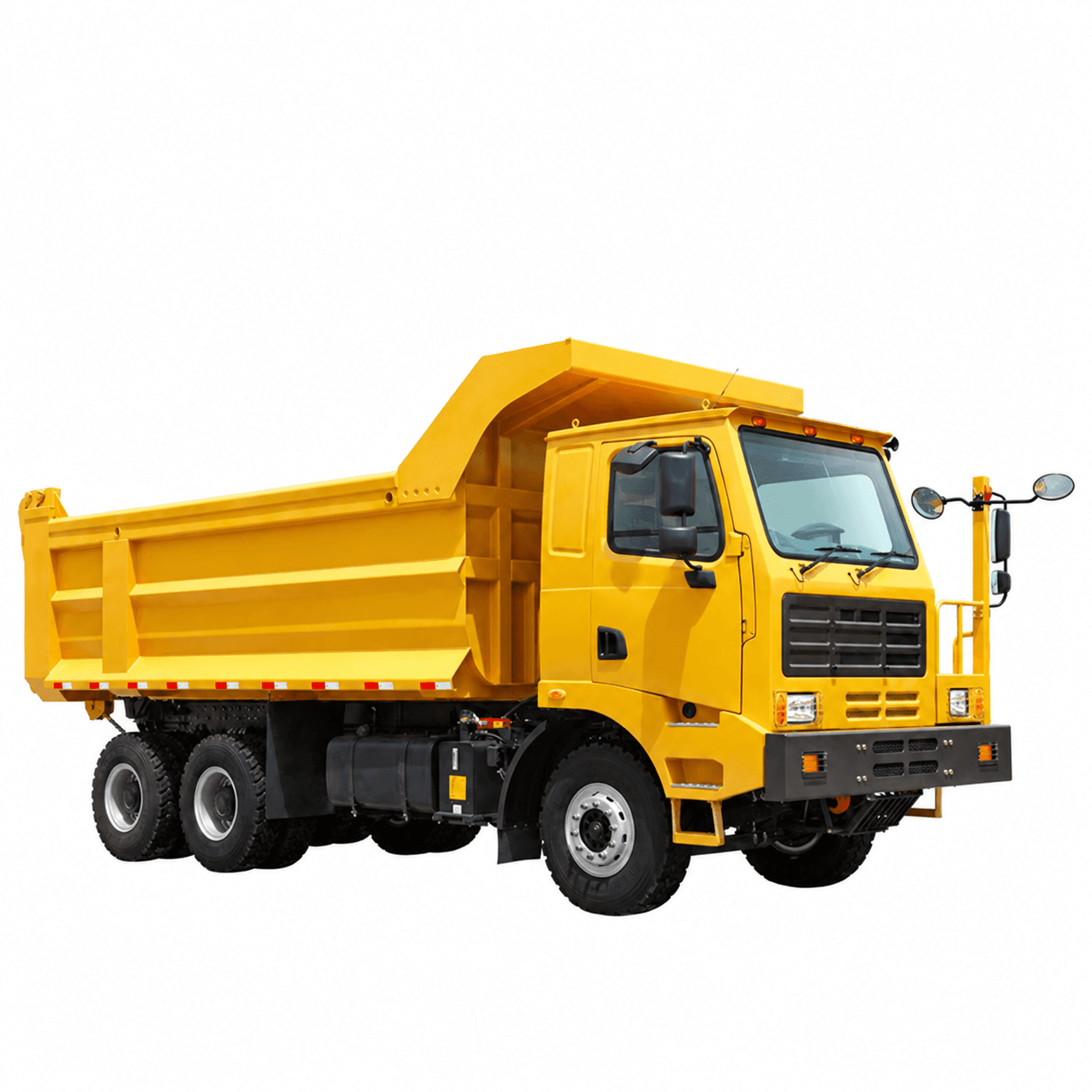

Equipment images.
